AWS Athena

Required Information

Field	Description
AWS Access Key ID	The access key ID for an IAM user or role with permissions to run queries in Athena.
AWS Secret Access Key	The secret access key paired with the Access Key ID.
AWS Region	The AWS region where your Athena workgroup and S3 bucket are located (e.g., `us-east-1`).
Athena Workgroup (Optional)	The name of the Athena workgroup to use. Required if S3 Output Location is not specified.
S3 Output Location (Optional)	The S3 path where Athena stores query results (e.g., `s3://bucket-name/path/`). Required if Athena Workgroup is not specified.

Either Athena Workgroup or S3 Output Location must be specified.

How to Obtain Each Value

AWS Access Key ID / AWS Secret Access Key

Log in to the AWS Management Console
Navigate to IAM → Users
Select the IAM user you want to use (or create a new one with Athena permissions)
Open the Security credentials tab
Under Access keys, click Create access key
Copy both the Access Key ID and Secret Access Key and store them in a safe place

The Secret Access Key is only shown once at the time of creation. Make sure to copy it before closing the dialog.

Attach an inline policy to the IAM user with the following structure. Replace each Resource value with your actual ARNs.

Steps to add an inline policy:

Open the IAM user's detail page
Go to the Permissions tab → Add permissions → Create policy

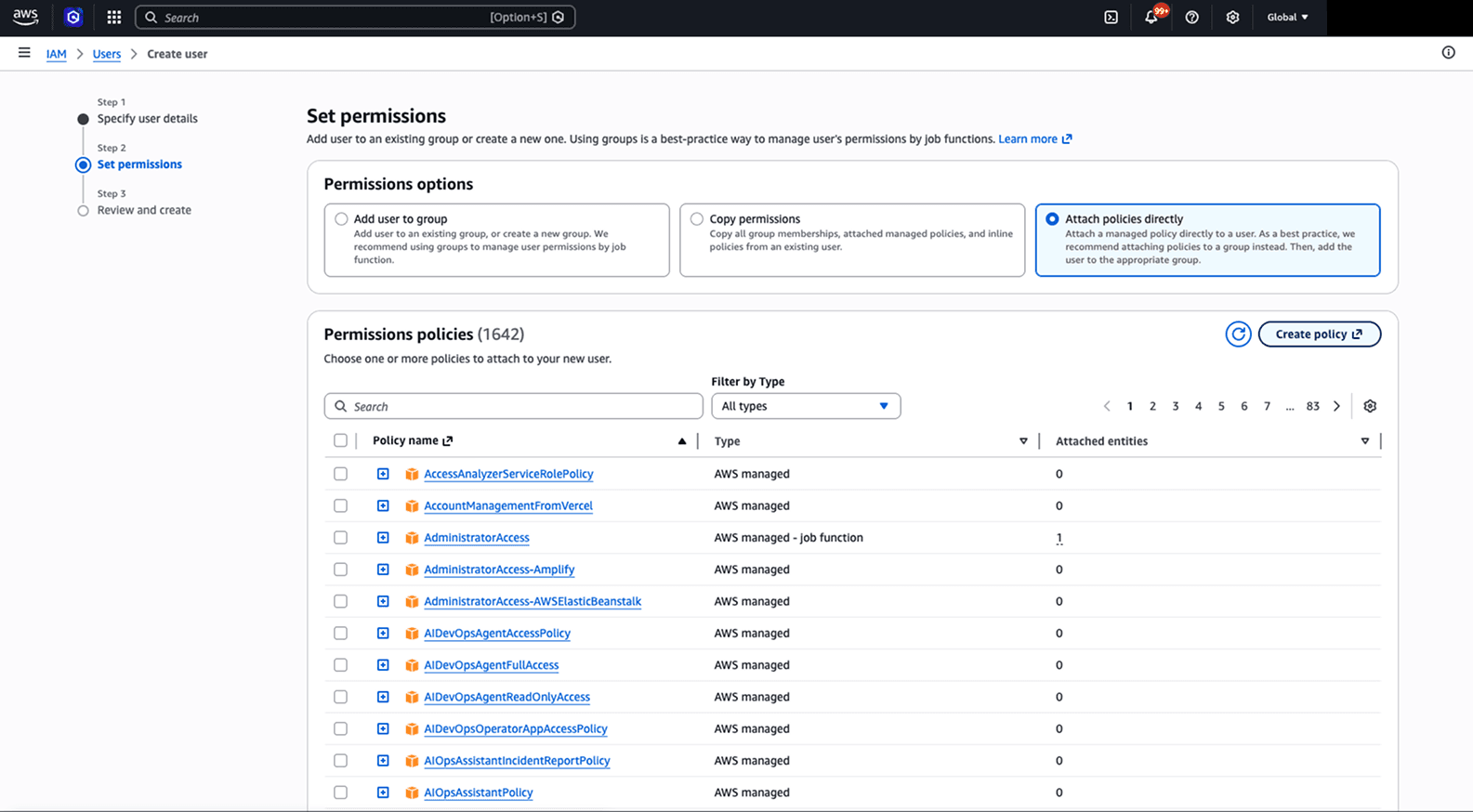

IAM Set permissions screen

Select the JSON tab, paste the policy below, and replace the values
Enter a policy name and save

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AthenaQueryAccess",
      "Effect": "Allow",
      "Action": [
        "athena:StartQueryExecution",
        "athena:GetQueryExecution",
        "athena:GetQueryResults",
        "athena:StopQueryExecution",
        "athena:GetWorkGroup"
      ],
      "Resource": [
        "arn:aws:athena:ap-northeast-1:123456789012:workgroup/my-workgroup" // <-- Replace with your actual value
      ]
    },
    {
      "Sid": "S3QueryResultsAccess",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:PutObject",
        "s3:GetBucketLocation",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::my-athena-results-bucket", // <-- Replace with your actual value
        "arn:aws:s3:::my-athena-results-bucket/*" // <-- Replace with your actual value
      ]
    },
    {
      "Sid": "S3DataSourceReadAccess",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::my-data-source-bucket", // <-- Replace with your actual value
        "arn:aws:s3:::my-data-source-bucket/*" // <-- Replace with your actual value
      ]
    },
    {
      "Sid": "GlueCatalogAccess",
      "Effect": "Allow",
      "Action": [
        "glue:GetDatabase",
        "glue:GetDatabases",
        "glue:GetTable",
        "glue:GetTables",
        "glue:GetPartition",
        "glue:GetPartitions"
      ],
      "Resource": [
        "arn:aws:glue:ap-northeast-1:123456789012:catalog", // <-- Replace with your actual value
        "arn:aws:glue:ap-northeast-1:123456789012:database/my_database", // <-- Replace with your actual value
        "arn:aws:glue:ap-northeast-1:123456789012:table/my_database/*" // <-- Replace with your actual value
      ]
    }
  ]
}

AWS Region

Use the region identifier where your Athena workgroup and related S3 bucket are located.

Example region identifiers:

Region	Identifier
US East (N. Virginia)	`us-east-1`
US West (Oregon)	`us-west-2`
Asia Pacific (Tokyo)	`ap-northeast-1`
Europe (Ireland)	`eu-west-1`

You can confirm the region in the top-right corner of the AWS Management Console.

Athena Workgroup

In the AWS Management Console, navigate to Athena
Click Workgroups in the left sidebar
Copy the name of the workgroup you want to use (default is primary)

If the workgroup has a query result location configured, you do not need to specify an S3 Output Location separately.

S3 Output Location

This is the S3 bucket path where Athena stores query results. Navigate to S3 in the AWS Management Console and select the bucket you want to use.

The format is: s3://your-bucket-name/optional-prefix/
